Description
Datos Técnicos
Speaker Type
2-Way Active Speaker
Datos Acústicos
Frequency Response [-10dB]
51 – 20.000 Hz
Frequency Response [-6dB]
55- 18.900 Hz
Max SPL
132 dB
HF
1.4″
HF Voice Coil
3”
Directivity (HxV)
110° x 90° (+20°/- 70°)
HF Type
Neodymium compression driver
Horn
Vertical asymmetric
Crossover Frequency
960 Hz
LF
2×10”
LF Voice Coil
2.5″
LF Type
Neodymium
Amplificador
Amp Technology
Digipro® G3
Amp Class
Class-D
Peak Power
1800 W
RMS Power
900 W
User Interface
OLED display + rotative knob w/switch
Self-rotating display
Yes
Positioning
EPD (Element Position Detection)
Display Mirroring
Yes
Procesador
Controller
DSP 56 bit
AD/DA Converter
24bit/48kHz
System Presets
Factory presets + User defined
Limiter
Dual Active Peak, RMS, Thermal
DSP Processing
FIR Linear Phase

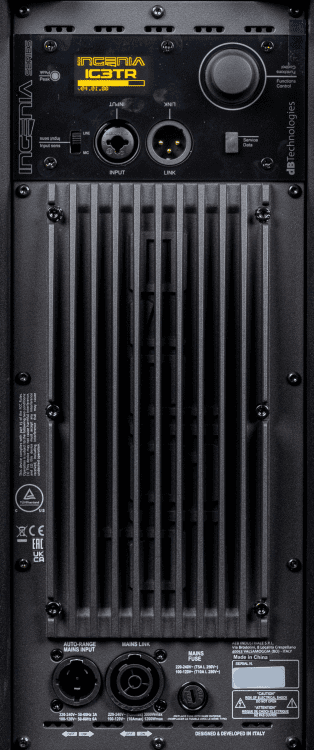

Sección de Entrada
Signal Input

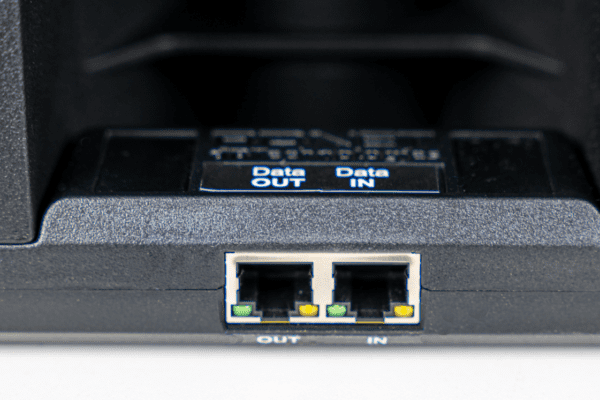

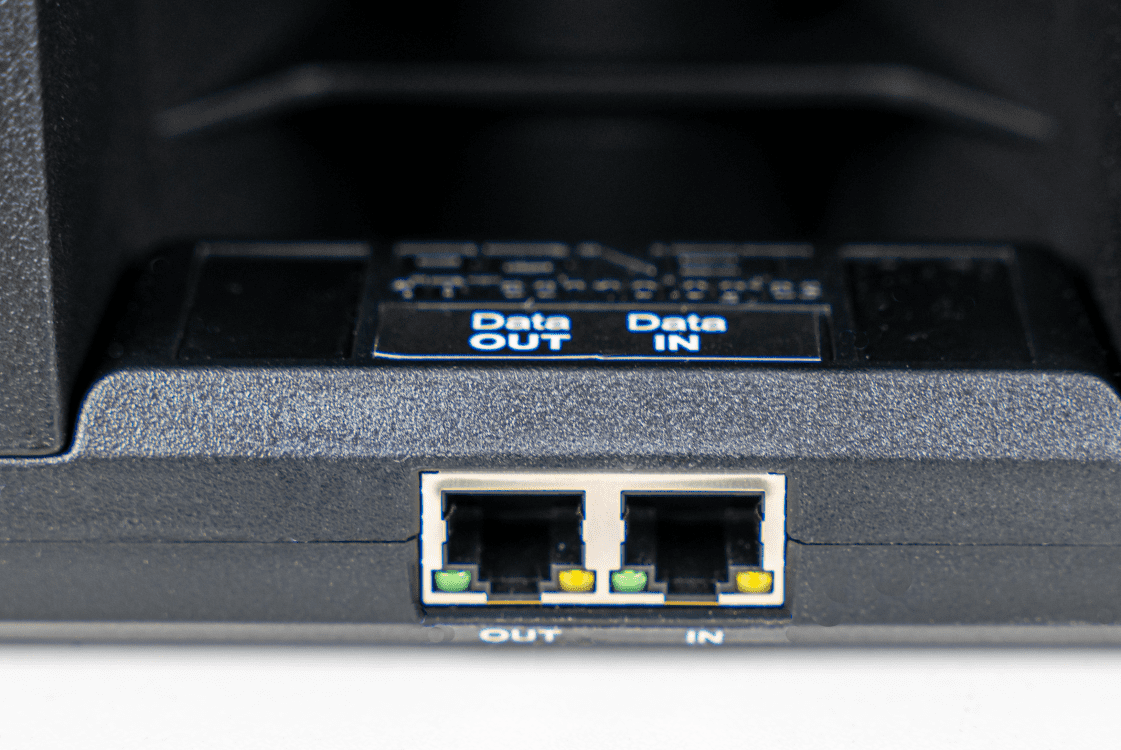

1 x XLR/jack combo, 1 x RJ45 Link (RDNet),
1x USB (Data Service)
1x USB (Data Service)
Signal Out
1x XLR balanced, 1 x RJ45 Link (RDNet)
USB connector
Yes – mini USB
Mecánica
Housing
Polypropylene PP reinforced
Grille
FULL /Invisible screws
Flyable
Yes
Handles
1x on top / 1x on bottom
Pole Mount
Yes
Width
280 mm (11.02 in)
Height
806 mm (31.73 in)
Depth
393 mm (15.47 in)
Weight
20.8 Kg (45.86 lbs.)
